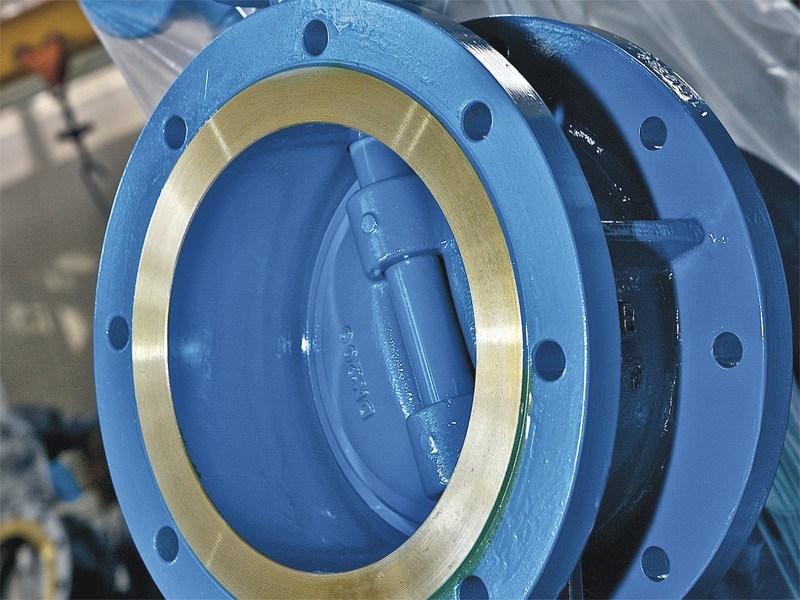

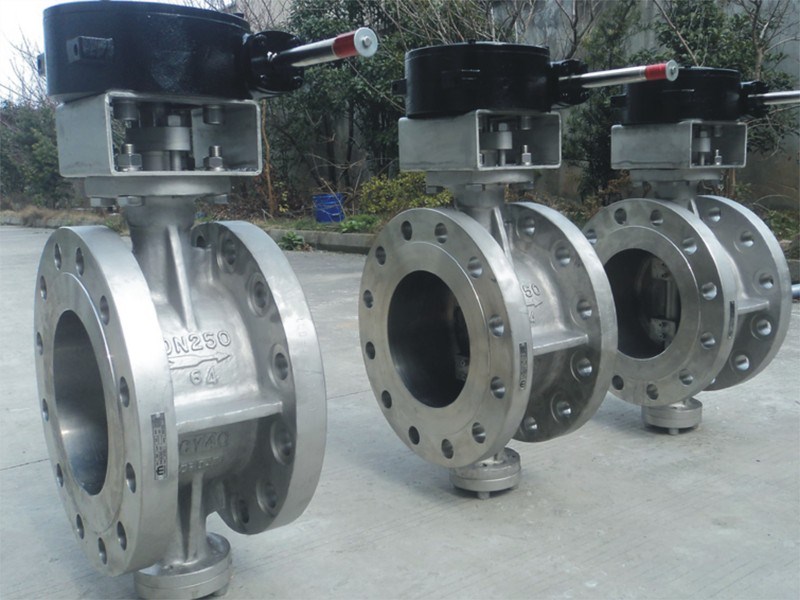

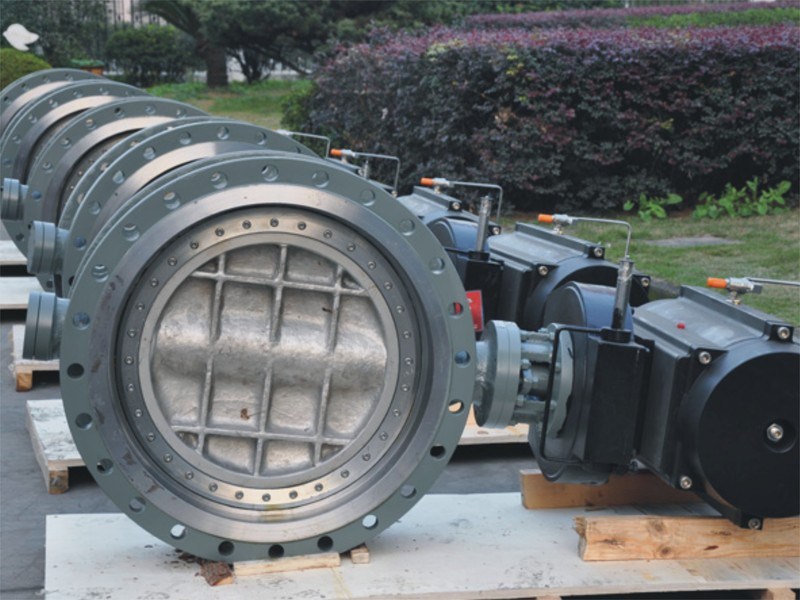

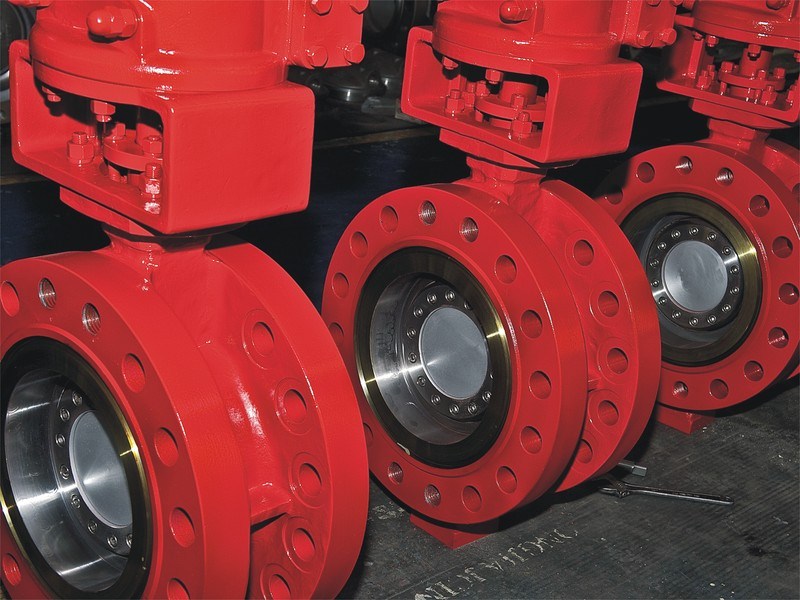

Double Eccentric Butterfly Valve, 2-48 Inch, 150-1000 LB
Key Specifications / Features
Model No.: Hits: 14
Double Eccentric Butterfly Valve Maker: Double Eccentric Butterfly Valves, 2-48 Inch, Class 150-1000 LB, 50-1200mm, PN10-PN100, Double Flanged, Wafer, Lugged.
Request a quoteTags:
Detail Infomation
Flange Eccentric Butterfly Valve
Med Double Eccentric Butterfly Valve are characterized by their long service and reduce friction. The Double Eccentric Butterfly Valves are available in a wide range of dimensions.
Double Eccentric Butterfly Valves is a range of high-performance, heavy-duty constructed butterfly valves available in wafer, lug, or double flange executions. The seat constructions with its double offset provide excellent controllability, bubble-tight shutoff, longer seat life as well as a smooth operation.
Med Double Eccentric Butterfly Valve s are with main Features as below
Lockable Lever.
Site maintenance.
Ease of automation.
Positive tight shut-off.
Optional top flanges to ISO 5211.
Qualified for both gaseous and liquid services.
Broad line of body and trim materials for a variety of medium services.
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202.
Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Stainless Steel, Alloy Steel, duplex steel and etc.
Temperature: -20 ℃ - 150 ℃.
Pressure Ratings: ANSI Class 150-1000 LB, PN10-PN100.
Size Ranges: 2-48 Inch, 50-1200mm (Larger sizes upon request).
Soft Seat: NBR, EPDM, VITON, PTFE.
Ends Connections: Wafer, Lugged, Double Flanged, Butt Weld or Grooved.
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic.
Med Double Eccentric Butterfly Valve are characterized by their long service and reduce friction. The Double Eccentric Butterfly Valves are available in a wide range of dimensions.
Double Eccentric Butterfly Valves is a range of high-performance, heavy-duty constructed butterfly valves available in wafer, lug, or double flange executions. The seat constructions with its double offset provide excellent controllability, bubble-tight shutoff, longer seat life as well as a smooth operation.
Med Double Eccentric Butterfly Valve s are with main Features as below
Lockable Lever.
Site maintenance.
Ease of automation.
Positive tight shut-off.
Optional top flanges to ISO 5211.
Qualified for both gaseous and liquid services.
Broad line of body and trim materials for a variety of medium services.
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202.
Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Stainless Steel, Alloy Steel, duplex steel and etc.
Temperature: -20 ℃ - 150 ℃.
Pressure Ratings: ANSI Class 150-1000 LB, PN10-PN100.
Size Ranges: 2-48 Inch, 50-1200mm (Larger sizes upon request).
Soft Seat: NBR, EPDM, VITON, PTFE.
Ends Connections: Wafer, Lugged, Double Flanged, Butt Weld or Grooved.
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic.
