Forged Steel Trunnion Ball Valve, 1/2-40 Inch, 150-2500 LB
Key Specifications / Features
Model No.: Hits: 13
Forged Trunnion Ball Valve Maker: Trunnion Mounted Ball Valves, Forged Steel, 1/2-40 Inch, Class 150-2500 LB, API 6D, BS 5351, ASME B16.34, DIN 3202.
Request a quoteTags:
Detail Infomation

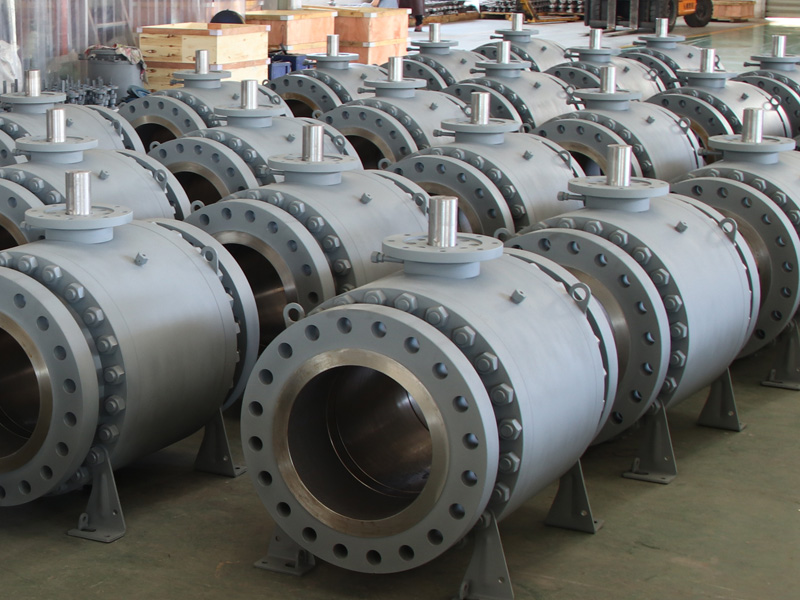

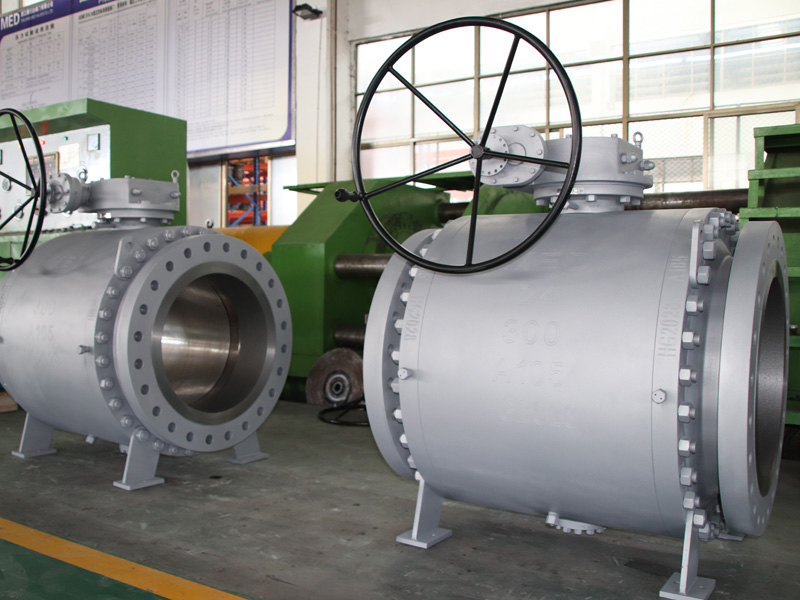

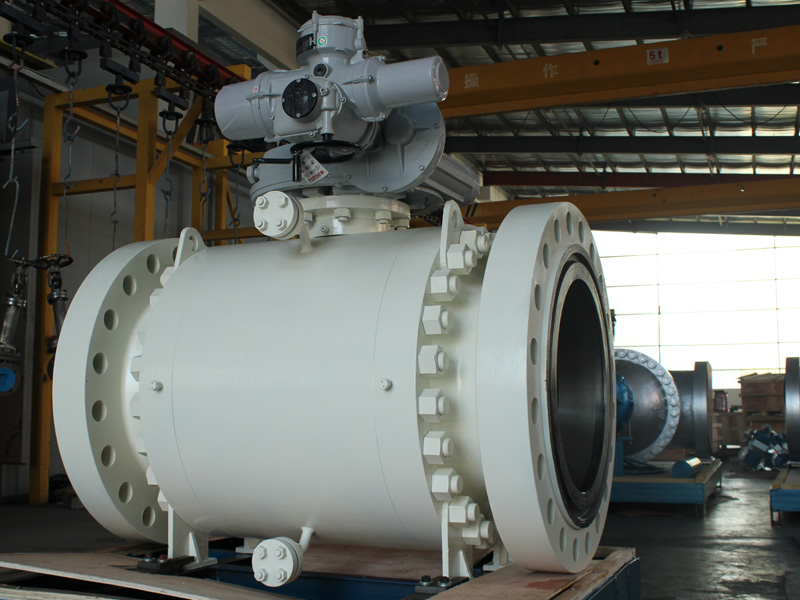

Forged Trunnion Ball Valve
With all advantages of Trunnion Mounted Ball Valves, Med Forged Steel Line is available in types of Two Piece Split Body & Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. Without inherent flaw of the cast. Enough wall thickness of separate bodies and adaptation of high-strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe. The internal parts of the valve are carefully designed and selected to ensure reliability under all kinds of work conditions.
All Med Trunnion Mounted Forged Ball Valves are designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351, or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof.
1. SizeRanges: 1/2-40 Inch.
2. Pressure Ratings: ANSI Class 150-2500 LB.
3. Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents.
4. Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials.
5. Ends Connections: Flanged R.F, RTJ, Welded or Victaulic.
6. Optional Locking Device or Stem Extension.
7. Optional Direct Mounting to ISO 5211.
8. Full Port or Regular Bore.
9. Double Block and BleedSend Inquiry.
With all advantages of Trunnion Mounted Ball Valves, Med Forged Steel Line is available in types of Two Piece Split Body & Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. Without inherent flaw of the cast. Enough wall thickness of separate bodies and adaptation of high-strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe. The internal parts of the valve are carefully designed and selected to ensure reliability under all kinds of work conditions.
All Med Trunnion Mounted Forged Ball Valves are designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351, or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof.
1. SizeRanges: 1/2-40 Inch.
2. Pressure Ratings: ANSI Class 150-2500 LB.
3. Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents.
4. Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials.
5. Ends Connections: Flanged R.F, RTJ, Welded or Victaulic.
6. Optional Locking Device or Stem Extension.
7. Optional Direct Mounting to ISO 5211.
8. Full Port or Regular Bore.
9. Double Block and BleedSend Inquiry.
