Cryogenic Globe Valve, 1/2-24 Inch, 150-2500 LB, BS 1873, ASME B16.34
Key Specifications / Features
Model No.: Hits: 10
Cryogenic Globe Valve Supplier: BS 1873, ASME B16.34, DIN 3202 Cryogenic Globe Valves, 1/2-24 Inch, 150-2500 LB, PN16-PN420, Flanged, Threaded, Welded Ends.
Request a quoteTags:
Detail Infomation

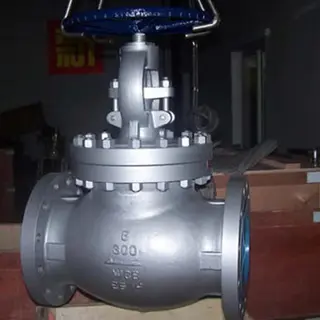

Cryogenic Globe Valve
Med Cryogenic Globe Valves are designed and manufactured strictly to International Standards BS 1873, ASME B16.34 or DIN 3202. During the processes of production, transportation, storage and usage of liquefied gases, countless technical problems can be experienced. Med cryogenic Globe valves are designed to assure safety and reliability under these critical conditions. All of Med cryogenic Globe valves are thoroughly cleaned and decreased. Afterward, the end ports are sealed to prevent contamination. This process is performed in an approved and designated cleanroom. Featured with compact structure & Low emission service.
Design & Manufactured: BS 1873, ASME B16.34 or DIN 3202.
P.T Ratings: ASME B16.34.
Face to Face dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Threaded Ends: ASME B1.20.1.
Socket-weld Ends: ASME B16.11.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Size Ranges: 1/2-24 Inch.
Pressure Ratings: Class 150-2500 LB, PN16-PN420.
Structures in Bolted or Pressure Sealed Union Cover, Bonnet or Stem Extension.
Ends Connections in Flanged, Threaded, Welded Ends and Grooved.
Body Materials available in Cast or Forged Low Carbon Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials upon request.
Trim Materials are available in ASTM A350 LF2, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Gear Device, Electric/Pneumatic or Hydraulic Actuators.
Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
Med Cryogenic Globe Valves are designed and manufactured strictly to International Standards BS 1873, ASME B16.34 or DIN 3202. During the processes of production, transportation, storage and usage of liquefied gases, countless technical problems can be experienced. Med cryogenic Globe valves are designed to assure safety and reliability under these critical conditions. All of Med cryogenic Globe valves are thoroughly cleaned and decreased. Afterward, the end ports are sealed to prevent contamination. This process is performed in an approved and designated cleanroom. Featured with compact structure & Low emission service.
Design & Manufactured: BS 1873, ASME B16.34 or DIN 3202.
P.T Ratings: ASME B16.34.
Face to Face dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Threaded Ends: ASME B1.20.1.
Socket-weld Ends: ASME B16.11.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Size Ranges: 1/2-24 Inch.
Pressure Ratings: Class 150-2500 LB, PN16-PN420.
Structures in Bolted or Pressure Sealed Union Cover, Bonnet or Stem Extension.
Ends Connections in Flanged, Threaded, Welded Ends and Grooved.
Body Materials available in Cast or Forged Low Carbon Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials upon request.
Trim Materials are available in ASTM A350 LF2, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Gear Device, Electric/Pneumatic or Hydraulic Actuators.
Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
