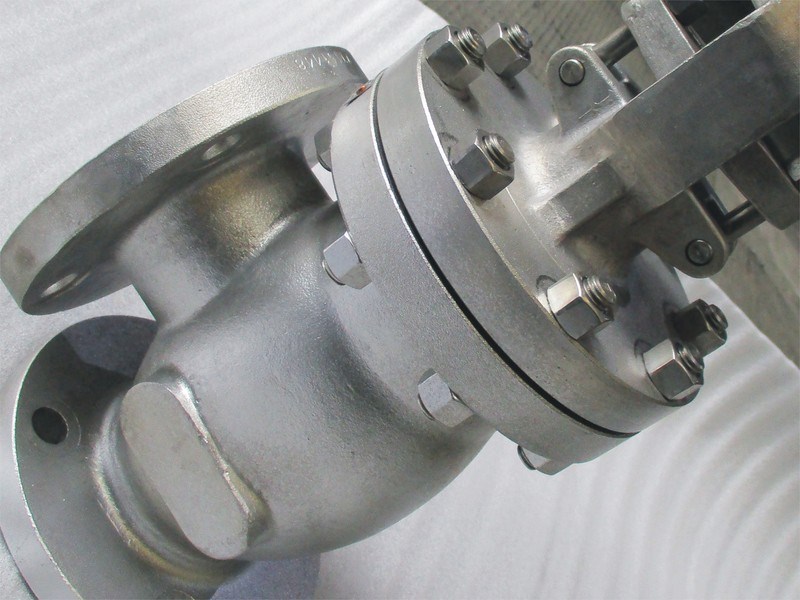

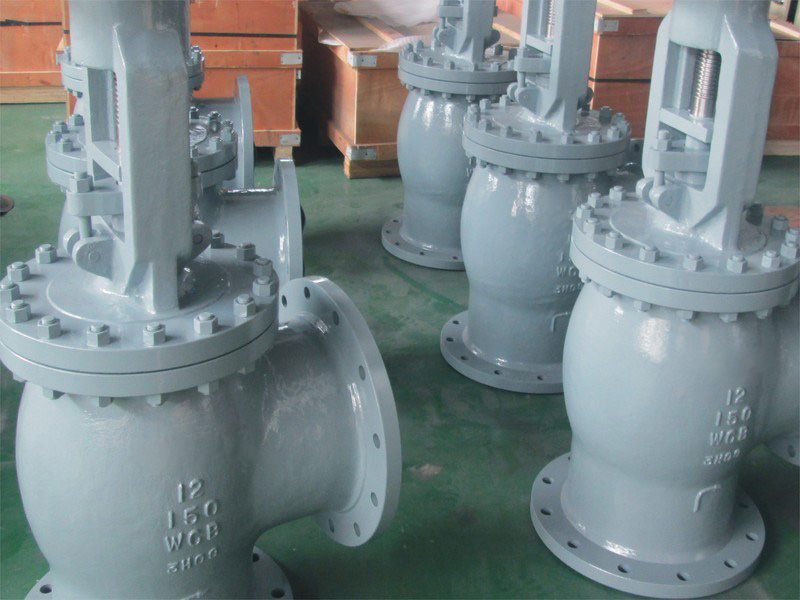

Cast Steel Angle Globe Valve, BS 1873, ASME B16.34, DIN 3202
Key Specifications / Features
Model No.: Hits: 15
Cast Steel Angle Globe Valve Fabricator: Angle Pattern Globe Valves, Cast Carbon, Alloy, Stainless, Duplex Steel, BS 1873, ASME B16.34, DIN 3202.
Request a quoteTags:
Detail Infomation
Angle Globe Valve
Med Cast Steel Angle Globe Valves are designed and manufactured strictly to International Standards BS 1873, ASME B16.34 or DIN 3202, designed with a 90 degree between inlet and outlet to suitable for the angle pipe, Featured with compact structure & Tight shut off service.
Med Angle Type Globe Valves are with main Features as below:
Design & Manufactured to BS 1873, ASME B16.34 or DIN 3202.
P.T Ratings: ASME B16.34.
Face to Face dimensions: ASME B16.10.
Flanged Ends to ASME B16.5.
Butt-weld Ends to ASME B16.25.
Valves Marking to MSS SP-25.
Inspect & Tested to API 598.
Size Ranges from 1-1/2-24 Inch.
Structured in Bolted Cover, Outside Screw and York.
Pressure Ratings from Class 150-1500 LB, PN16-PN260.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved.
Body Materials available in Cast Carbon Steel, Cast Low Carbon Steel, Cast Alloy Steel, Cast Stainless Steel, Cast Duplex & Super Duplex Steel, Special Materials in Cast Monel, Alu. Bronze, etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Gear Devices, Electric, Pneumatic or Hydraulic Actuators.
Optional Globe Check, Bypass system, Live Loading Packing & O-ring Seal.
Med Cast Steel Angle Globe Valves are designed and manufactured strictly to International Standards BS 1873, ASME B16.34 or DIN 3202, designed with a 90 degree between inlet and outlet to suitable for the angle pipe, Featured with compact structure & Tight shut off service.
Med Angle Type Globe Valves are with main Features as below:
Design & Manufactured to BS 1873, ASME B16.34 or DIN 3202.
P.T Ratings: ASME B16.34.
Face to Face dimensions: ASME B16.10.
Flanged Ends to ASME B16.5.
Butt-weld Ends to ASME B16.25.
Valves Marking to MSS SP-25.
Inspect & Tested to API 598.
Size Ranges from 1-1/2-24 Inch.
Structured in Bolted Cover, Outside Screw and York.
Pressure Ratings from Class 150-1500 LB, PN16-PN260.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved.
Body Materials available in Cast Carbon Steel, Cast Low Carbon Steel, Cast Alloy Steel, Cast Stainless Steel, Cast Duplex & Super Duplex Steel, Special Materials in Cast Monel, Alu. Bronze, etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Gear Devices, Electric, Pneumatic or Hydraulic Actuators.
Optional Globe Check, Bypass system, Live Loading Packing & O-ring Seal.
