ASTM A182 LF2 Cryogenic Gate Valve, 1/2-2 Inch, 150-2500 LB
Key Specifications / Features
Model No.: Hits: 15
ASTM A182 LF2 Cryogenic Gate Valve Manufacturer: ASTM A182 LF2 Gate Valves, Cryogenic, 1/2-2 Inch, 150-2500 LB, PN16-PN420, API 602, ASME B16.34, DIN 3202.
Request a quoteTags:
Detail Infomation
Cryogenic Gate Valve

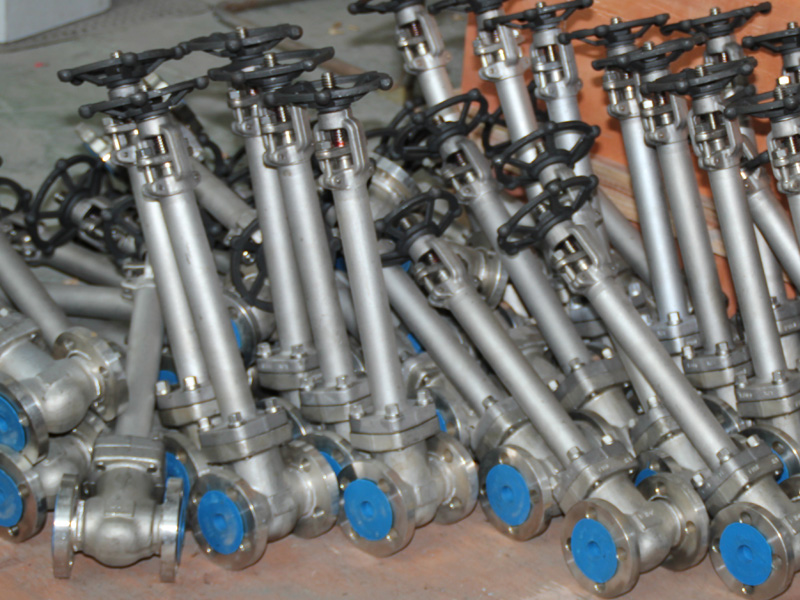

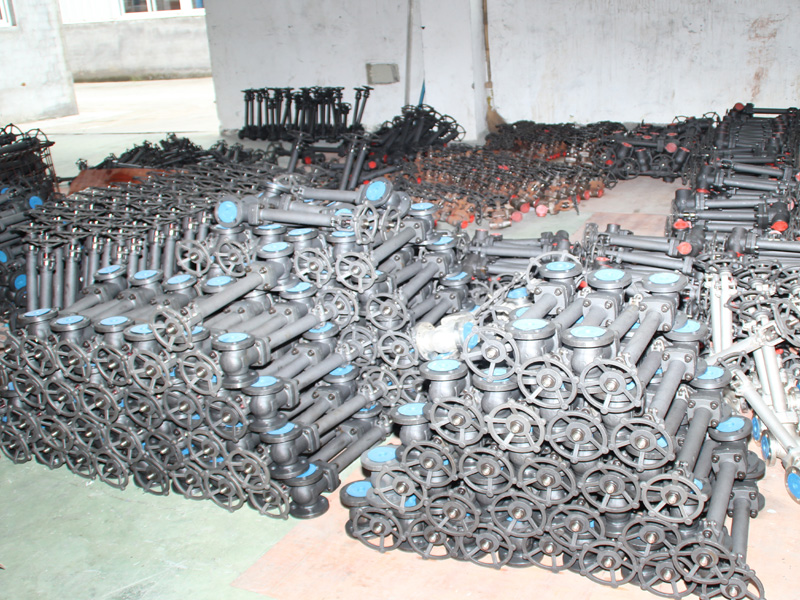

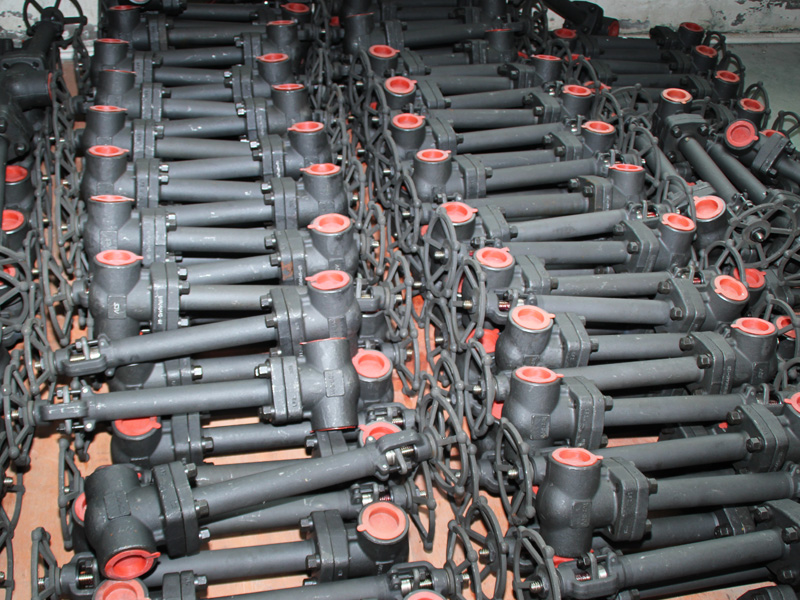

Med Cryogenic Gate Valves are adapted to special service conditions at cryogenic temperatures, extended bonnets with sufficient gas column length, usually specified by the customer, are supplied for all valves to keep stem packing at sufficient distance away from the cold fluid to remain functional, solid CoCr alloy wedges on NPS 1/2 – 2 (DN 15–50) valves operate with no galling in cryogenic service, all cryogenic valves are thoroughly degreased and cleaned and pipe ends are sealed to prevent contamination.
Featured with compact structure & Low emission service.
Design & Manufactured to API 602, ASME B16.34 or DIN 3202.
P.T Ratings to ASME B16.34.
Face to Face dimensions to ASME B16.10.
Flanged Ends to ASME B16.5.
Butt-weld Ends to ASME B16.25.
Threaded Ends to ASME B1.20.1.
Socket-weld Ends to ASME B16.11.
Valves Marking to MSS SP-25.
Inspect & Tested to API 598.
Sizes Ranges: 1/2-2 Inch.
Pressure Ratings: Class 150-2500 LB, PN16-PN420.
Structures in Bolted or Pressure Sealed Union Cover, Bonnet or Stem Extension.
Ends Connections in Flanged, Threaded, Welded Ends and Grooved.
Body Materials available in Forged Low Carbon Steel, Forged Stainless Steel, Duplex & Super Duplex Steel, Special Materials upon request.
Trim Materials available in 13%Cr, ASTM A182 LF2, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Electric, Pneumatic or Hydraulic Actuators.
Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
Please feel free to contact with Med Sales Team or your local Representatives for other optional special requirements.
Med Cryogenic Gate Valves are adapted to special service conditions at cryogenic temperatures, extended bonnets with sufficient gas column length, usually specified by the customer, are supplied for all valves to keep stem packing at sufficient distance away from the cold fluid to remain functional, solid CoCr alloy wedges on NPS 1/2 – 2 (DN 15–50) valves operate with no galling in cryogenic service, all cryogenic valves are thoroughly degreased and cleaned and pipe ends are sealed to prevent contamination.
Featured with compact structure & Low emission service.
Design & Manufactured to API 602, ASME B16.34 or DIN 3202.
P.T Ratings to ASME B16.34.
Face to Face dimensions to ASME B16.10.
Flanged Ends to ASME B16.5.
Butt-weld Ends to ASME B16.25.
Threaded Ends to ASME B1.20.1.
Socket-weld Ends to ASME B16.11.
Valves Marking to MSS SP-25.
Inspect & Tested to API 598.
Sizes Ranges: 1/2-2 Inch.
Pressure Ratings: Class 150-2500 LB, PN16-PN420.
Structures in Bolted or Pressure Sealed Union Cover, Bonnet or Stem Extension.
Ends Connections in Flanged, Threaded, Welded Ends and Grooved.
Body Materials available in Forged Low Carbon Steel, Forged Stainless Steel, Duplex & Super Duplex Steel, Special Materials upon request.
Trim Materials available in 13%Cr, ASTM A182 LF2, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Electric, Pneumatic or Hydraulic Actuators.
Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
Please feel free to contact with Med Sales Team or your local Representatives for other optional special requirements.
